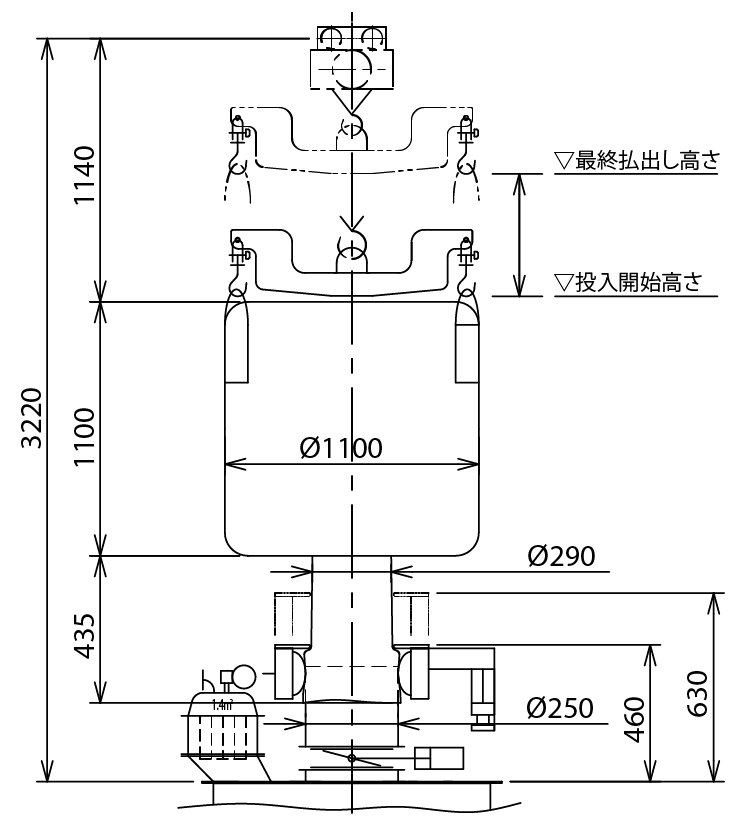

Dimensions
-

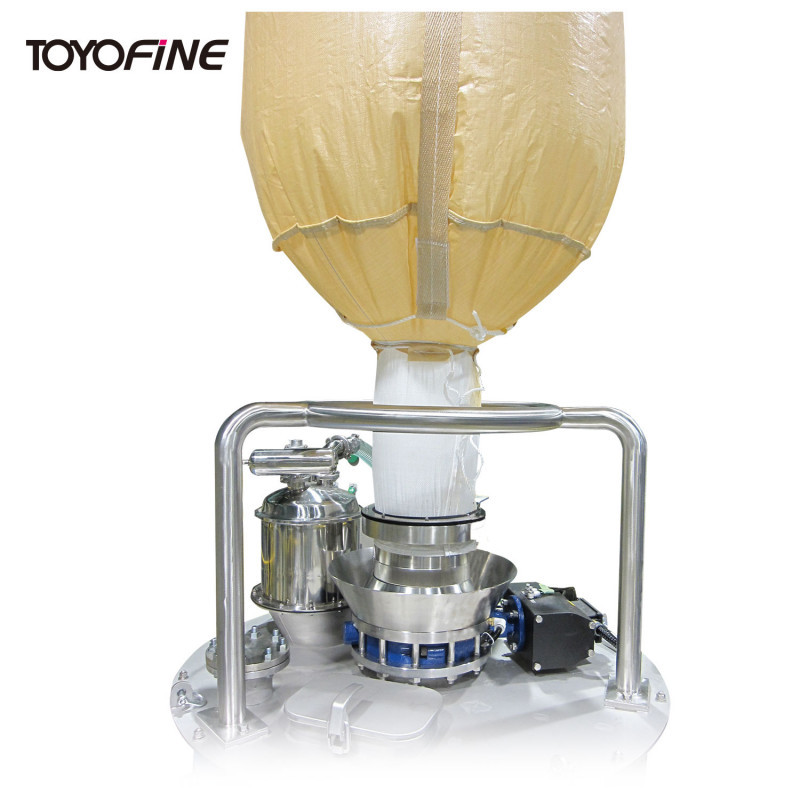

Non-dust big bag (BB) discharger (NDBBD)
Non-dust discharge equipment from the flexible intermediate bulk container (FIBC) to the hopper
Features
● Fully enclosed and dust free operation
Can be attached and deatttched the FIBC by the chuking master and be discharged in dust free enviroment.

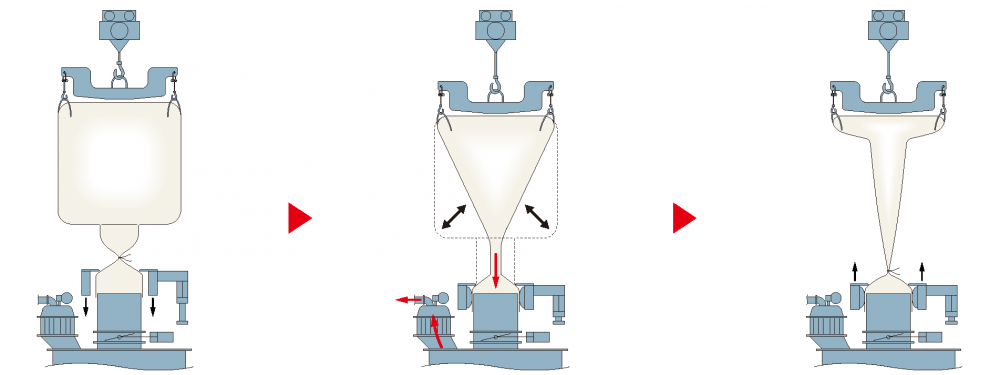

● Remaining amount reduction
Can be reduce remaining amount in the FIBC by expansioning and contracting.
● Direct feeding
Can de directly fed of raw materials from the FIBC.
● Prevnting contamination
Fully enclosed operation prevents contamination from external environment.
Can be attached and deatttched the FIBC by the chuking master and be discharged in dust free enviroment.
● Remaining amount reduction
Can be reduce remaining amount in the FIBC by expansioning and contracting.
● Direct feeding
Can de directly fed of raw materials from the FIBC.
● Prevnting contamination
Fully enclosed operation prevents contamination from external environment.
Movie
Specifications
| Material | SUS304 |
|---|---|
| Bag clamp size | φ250 |
| Inlet valve | 250A butterfly valve |
| FIBC hoisting type | Crane type |
| Control panel | Dustproof enclosure for indoor use |
| Options | Discharge promotion function |
