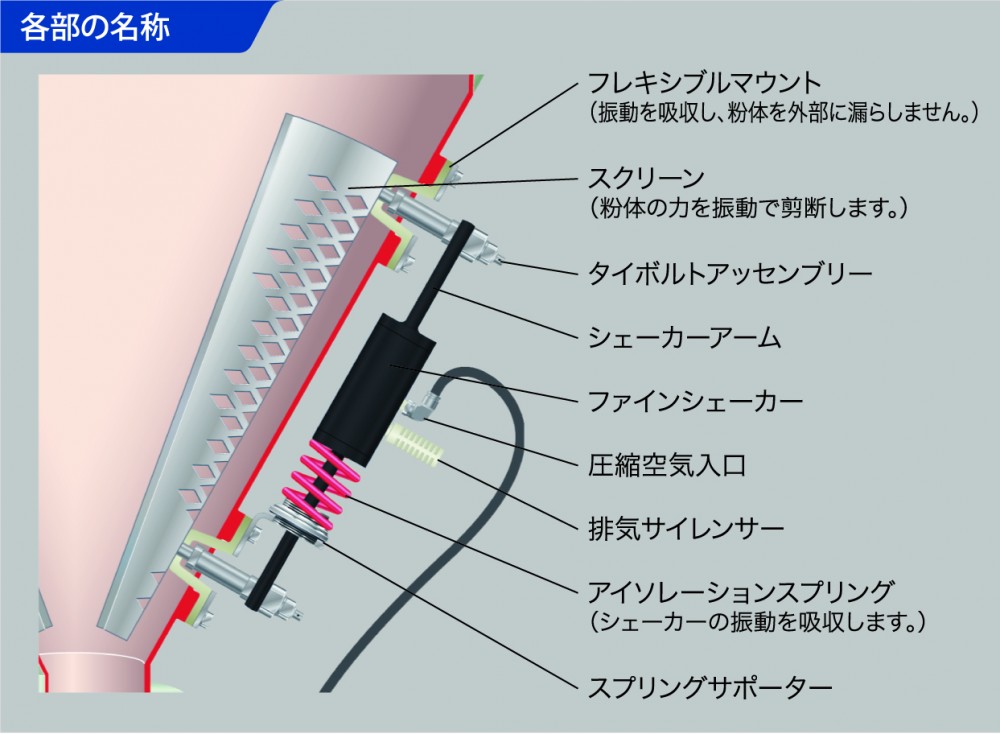

Breaker Boy part name
-

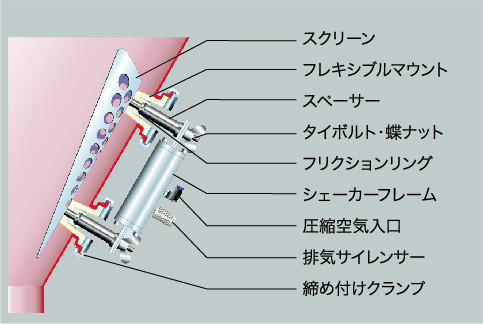

Breaker Boy Mini part name

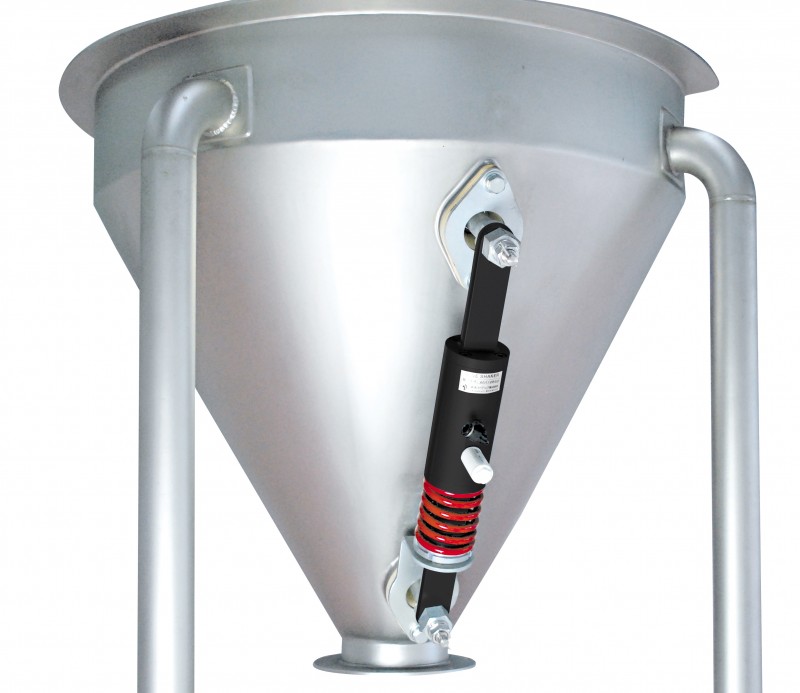

Bridge preventer/Breaker Boy (TFB)
Specialized machine in bridge prevention
Features
● Optimum solution for powders that are difficult to discharge
Can be discharged powders that are difficult to discharge by knoclers, vibrators and aerators
● Directly bring up bridges
Vibration is applied directly to powders inside the hopper, bringing up bridges.
● Can be installed on an existing hopper
Can also be installed on an existing hopper if mounting holes be maked.
● Low noise
The operating sound is small and not be unpleasant.(60dB～70dB)。
● Easy disassembly and reassembly
Can be disassembled and reassembled withou special tools.
● Sanitary type

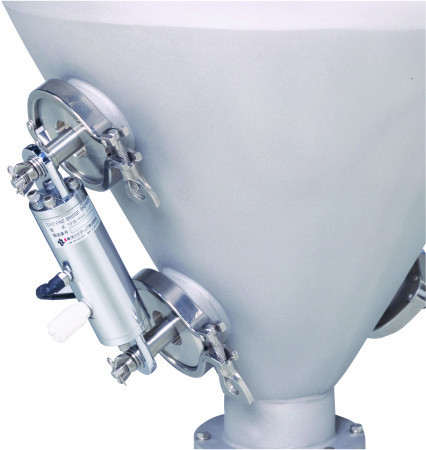

A compact model “TFB-mini” is also available.
Can be discharged powders that are difficult to discharge by knoclers, vibrators and aerators
● Directly bring up bridges
Vibration is applied directly to powders inside the hopper, bringing up bridges.
● Can be installed on an existing hopper
Can also be installed on an existing hopper if mounting holes be maked.
● Low noise
The operating sound is small and not be unpleasant.(60dB～70dB)。
● Easy disassembly and reassembly
Can be disassembled and reassembled withou special tools.
● Sanitary type
A compact model “TFB-mini” is also available.
Movie
Specifications
| Model | TFB | TFB-mini（Sanitary specifications） |
|---|---|---|
| Air consumption | 150 NL/min at 0.3 MPa※1 | 110 NL/min at 0.4 Mpa※1 |
| Product touched material | SUS304 | SUS304 |
| Flexible mount material | CR(Black)、NBR(White)、EPDM(Black)※2 | NBR(White)、Silicon (milky white)※2 |
| Screen shape | Flat or round | Flat or round |
※1 ㎥/min：0℃、101.325kPa
※2 Please contact us if you want to use it for food products.
※2 Please contact us if you want to use it for food products.
Application examples
| Raw material | Bulk density (g/cm3) |
|---|---|
| Graphite | 0.5 |
| Milk powder | 0.4 |
| Toner | 0.2 |
| Flour・spices | 0.6 |
| Beverage powder | 0.4 |
| Instant coffee | 0.3 |
| Cocoa powder | 0.4 |
| Creaming powder | 0.35 |
| Soup powder | 0.3 |
| Food additive | 0.43 |
| Spices | 0.6 |
| Starch | 0.17 |
| Refined salt | 1.22 |
| Flour | 0.5 |
| Soybean powder | 0.4 |
| Soy sauce powder | 0.4 |
| Activated carbon powder | 0.3 |
| Carbon powder | 0.5 |
| Silica mixture powder | 0.6 |
| Fire extinguishing powder | 1 |
| Pigment | 0.6 |
| Silica | 0.4～0.5 |
| Plastic powder | 0.5 |
| Calcium carbonate | 0.7～0.8 |
| Metal oxide | 0.7 |
| Nickel powder | 0.7 |
