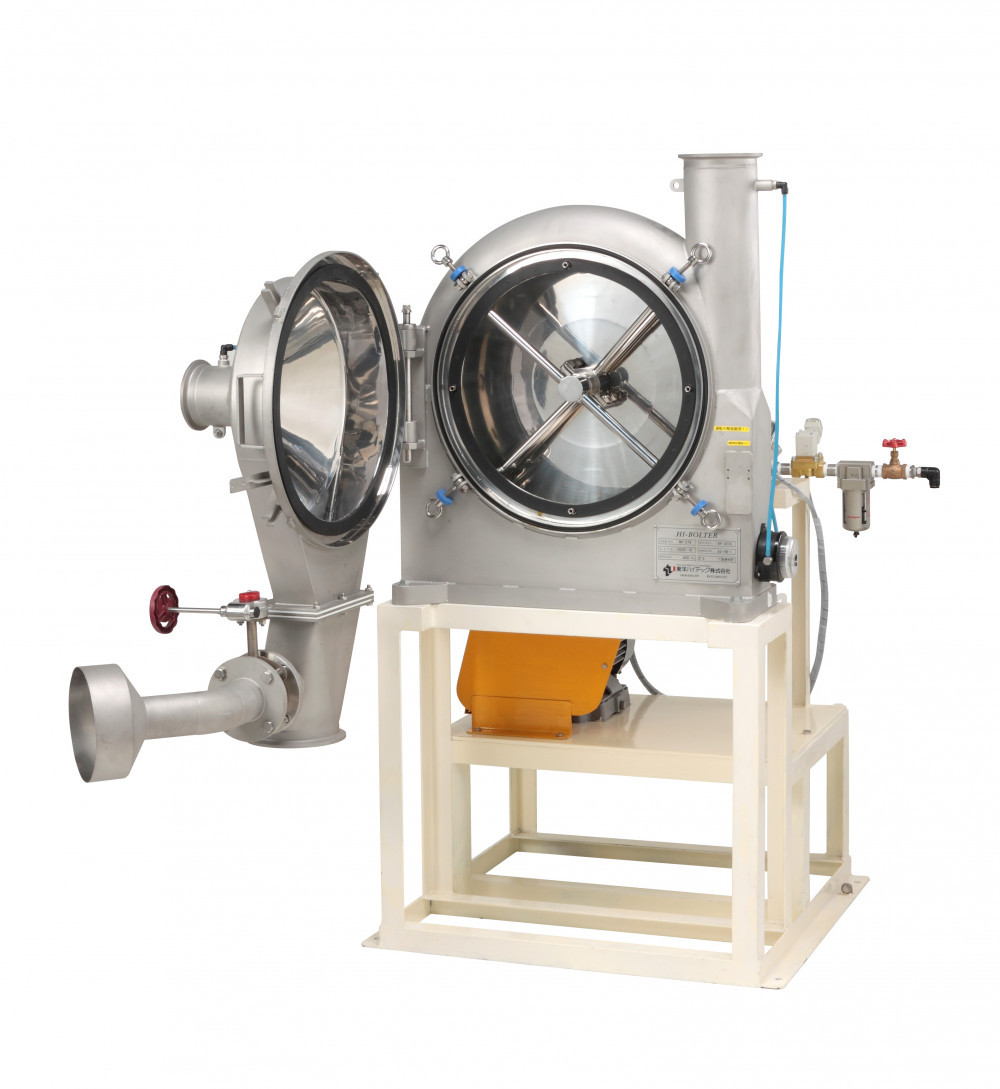

Door open
-

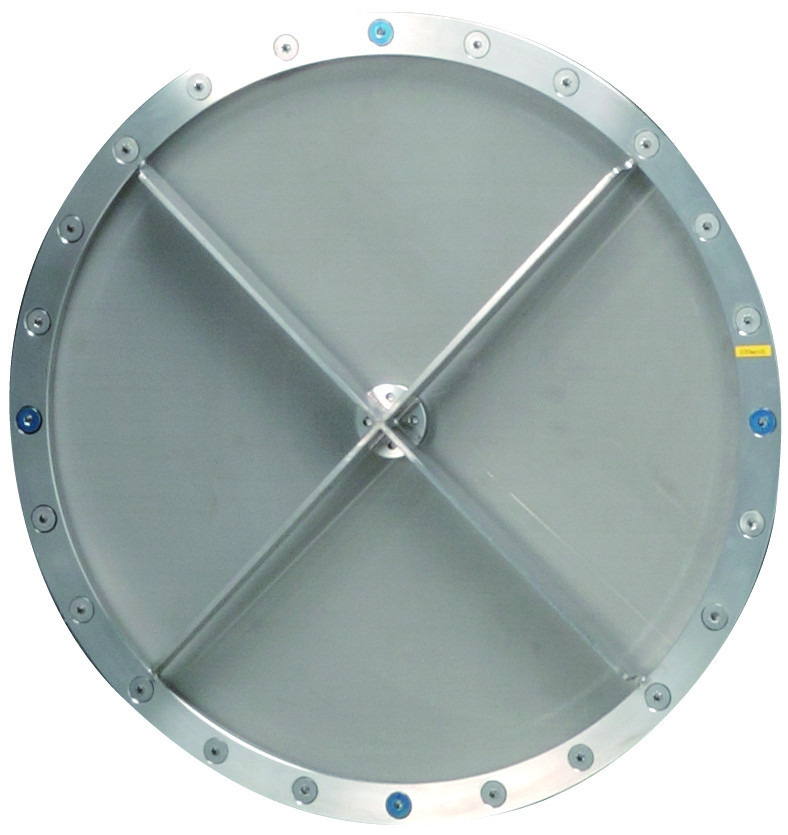

SUS net
-

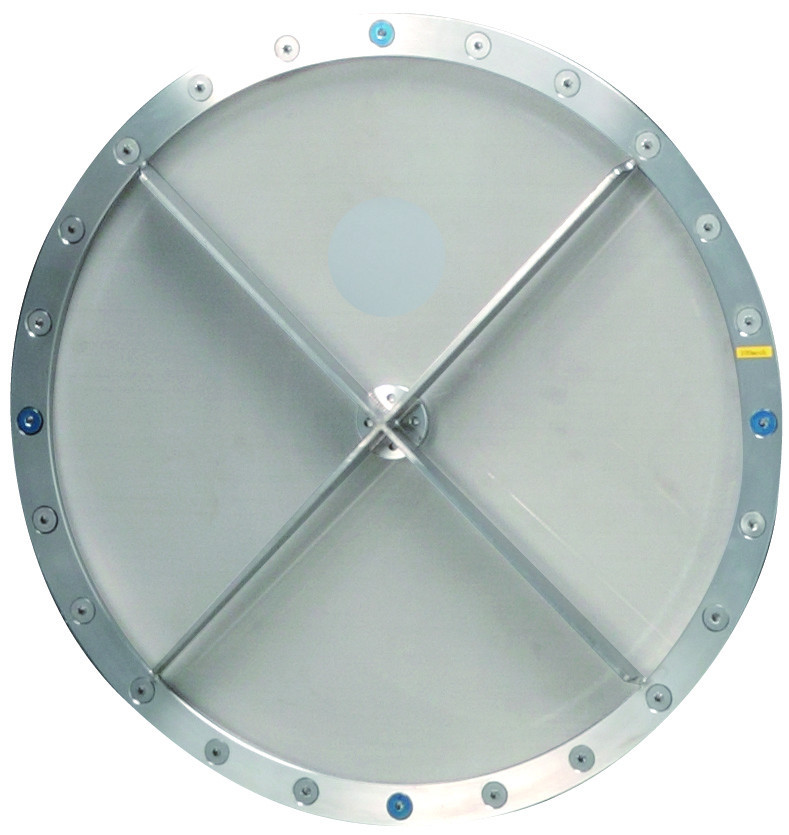

Nylon net
-

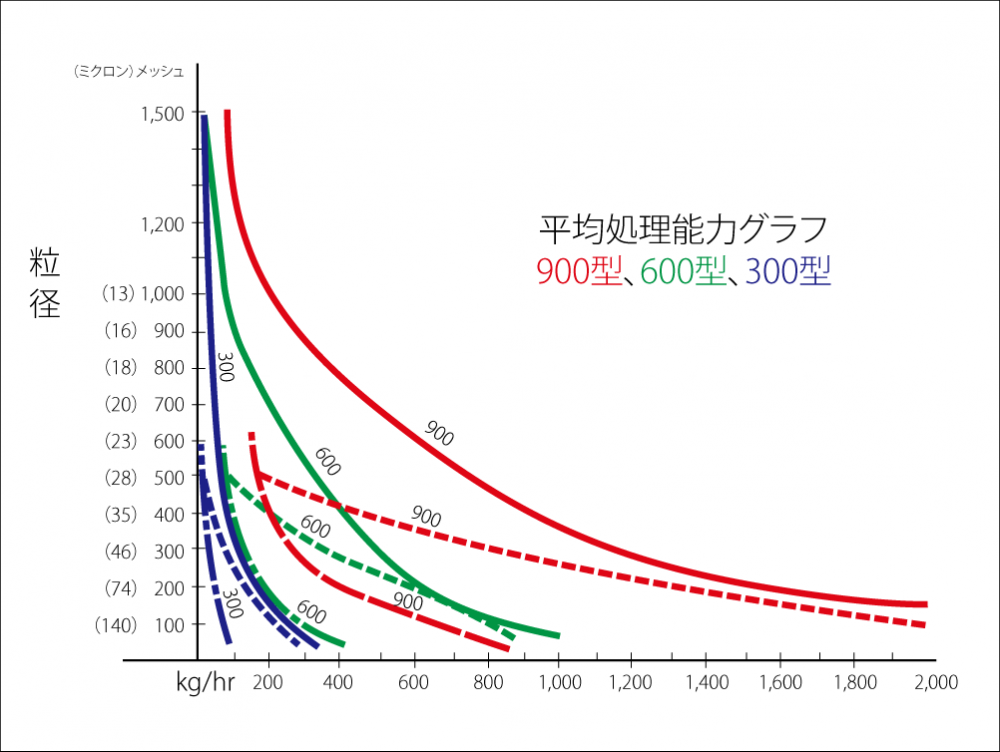

Average processing power graph
-

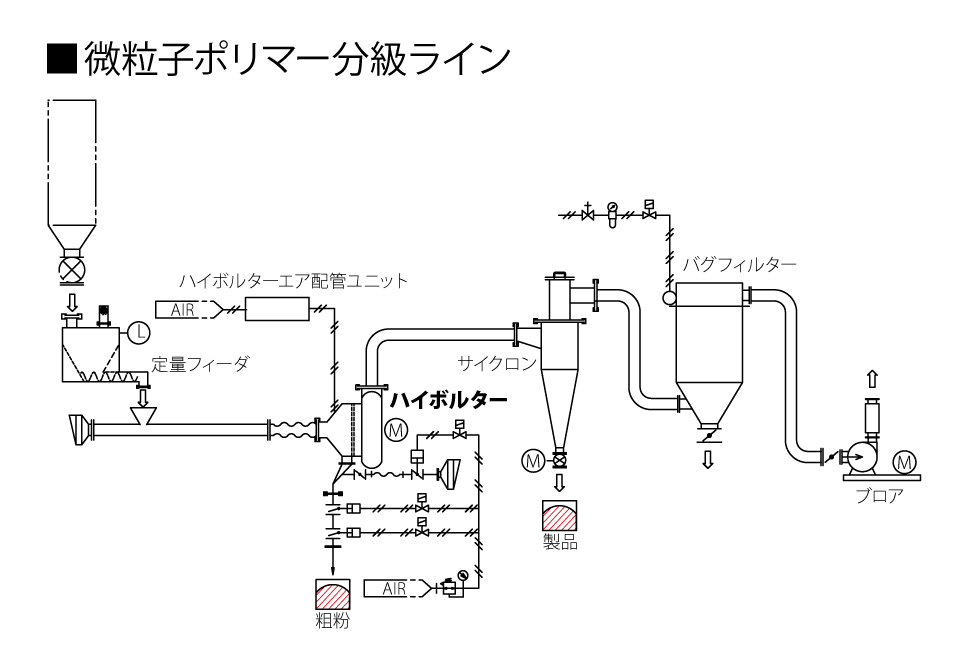

Fine particle polymer Classification line
-

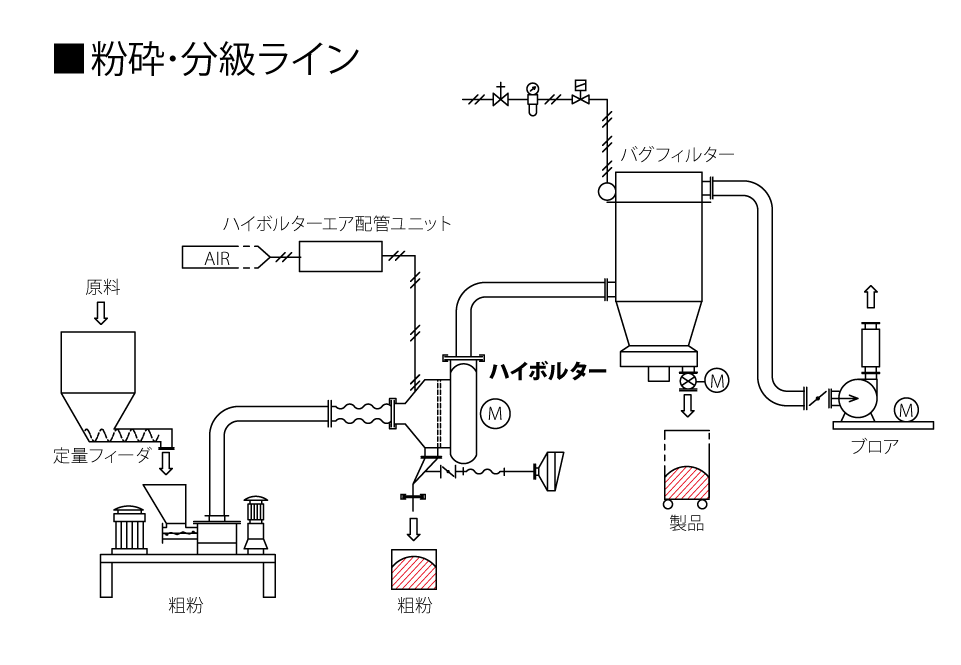

pulverizing・Classification line

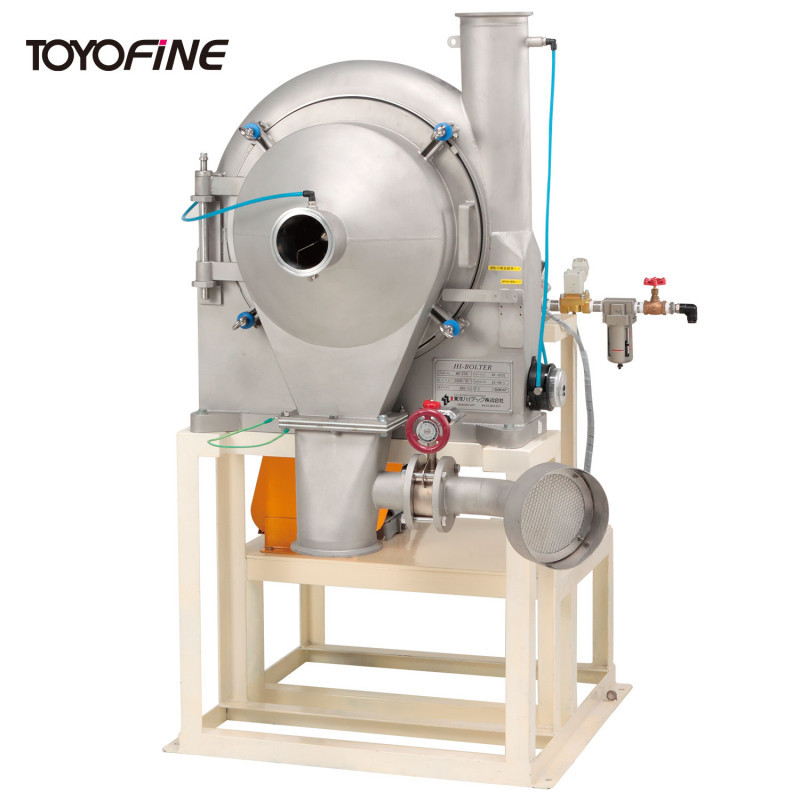

Blow-through type, high-performance sieving machine, Hi-BOLTER (HB)
The optimal sieving machine for classifying spherical particles
Features
● Sharp classification
Physical classification using a screen prevents the intrusion of oversize particles.
● High processing capacity in the fine particle range
Because raw material dispersed in a stream of air passes through the screen, the capacity per unit of screen surface area is high.
● Stable and continuous operation
The effects of the backwash air on the screen and casing eliminate clogging and adhesion.
● Easy disassembly and cleaning
The screen can be replaced easily, and the simple structure inside the casing allows easy cleaning.
● Easy maintenance
As no vibrating motor or other special components are used, the structure is simple and malfunctions are rare.
● Can be install in your existing process
Can be incorporated into a pulverizing line or pneumatic conveying line.
● Good working enviroment
The machine produces little vibration and noise, and thanks to the enclosed structure there is no concern of dust.
Physical classification using a screen prevents the intrusion of oversize particles.
● High processing capacity in the fine particle range
Because raw material dispersed in a stream of air passes through the screen, the capacity per unit of screen surface area is high.
● Stable and continuous operation
The effects of the backwash air on the screen and casing eliminate clogging and adhesion.
● Easy disassembly and cleaning
The screen can be replaced easily, and the simple structure inside the casing allows easy cleaning.
● Easy maintenance
As no vibrating motor or other special components are used, the structure is simple and malfunctions are rare.
● Can be install in your existing process
Can be incorporated into a pulverizing line or pneumatic conveying line.
● Good working enviroment
The machine produces little vibration and noise, and thanks to the enclosed structure there is no concern of dust.
Movie
Specifications
| Model | HB-300S | HB-450S | HB-600S | HB-750S | HB-900S |
|---|---|---|---|---|---|
| Power（kw） | 0.4 | 1.5 | 1.5 | 2.2 | 2.2 |
| Wire mesh diameter（mm） | Φ298 | Φ450 | Φ620 | Φ800 | Φ956 |
| Scale-up factor（times） | 1 | 2 | 4 | 7 | 10 |
| Air flow rate（㎥/min）(max) | 5 | 12 | 22 | 36 | 52 |
| Required frow rate of compressed air（㎥/min） | 1.2 | 1.8 | 2.6 | 3.5 | 4.2 |
| Dimensions（mm） | 1030w×1140L×870H | 1040w×1380L×1230H | 1140w×1580L×1340H | 1340w×1690L×1640H | 1490w×1900L×1740H |
| Weight（kg） | 180 | 320 | 420 | 480 | 550 |
Application examples
| Raw material | Bulk density (g/cm3) | Capacity(kg/hr) | Opening (μm) |
|---|---|---|---|
| Toner | 0.7 | 32 | 70 |
| Ceramic | 0.9 | 130 | 38 |
| Aluminium oxide | 1.1 | 40 | 25 |
| Carbon | 0.14 | 50 | 75 |
| Plastic powder | 0.4 | 50 | 25 |
| Solder | 4.8 | 30 | 20 |
| Sealant | 0.5 | 10 | 9 |
| Fluorocarbon polymers | 0.6 | 600 | 300 |
| Paint poeder | 0.4 | 150 | 104 |
| Spherical silica | 0.7 | 7 | 20 |
| Talc | 0.3 | 100 | 75 |
| Metal powder | 1.4 | 50 | 45 |
| Fire extinguishing powder | 0.8 | 1300 | 577 |
